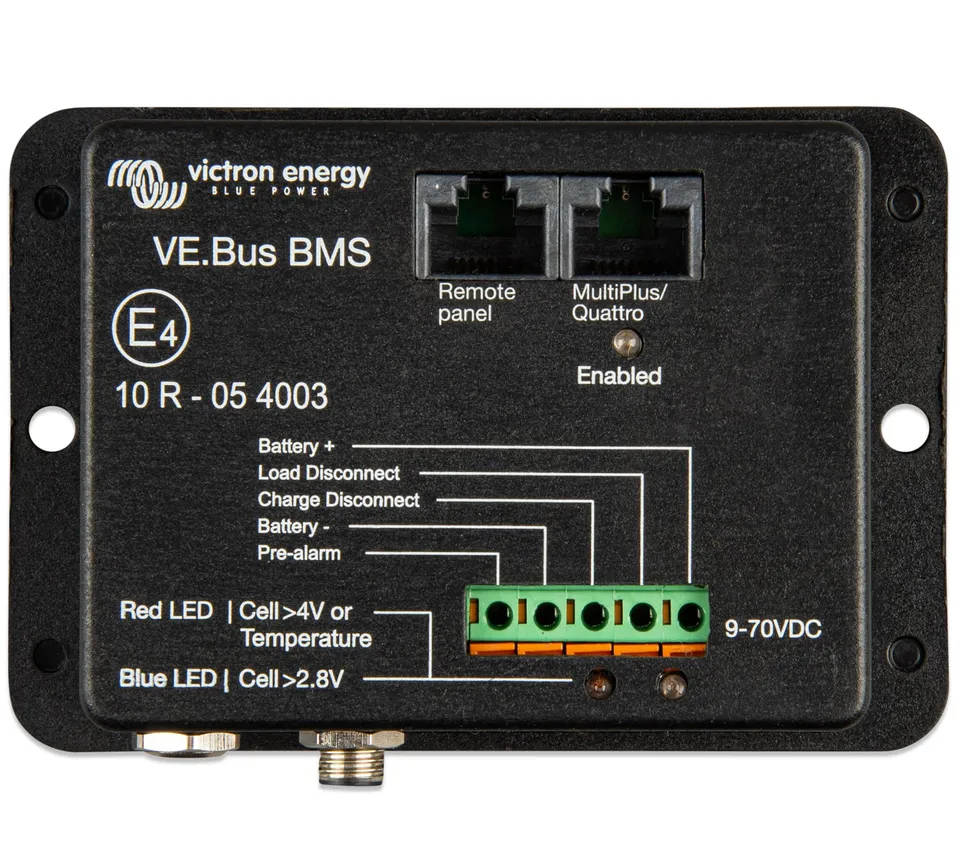

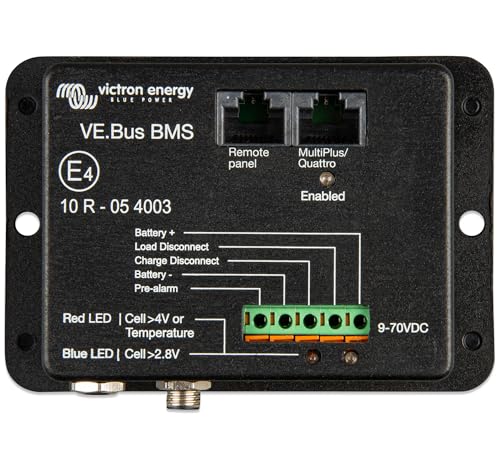

Buy the Victron Energy VE.Bus BMS Battery Management System — full protection for 12V, 24V, and 48V lithium systems — online at PowerHaven Outpost for just $56.06, a 52% discount off the $117.30 compare-at price.
How Does the VE.Bus BMS Work?

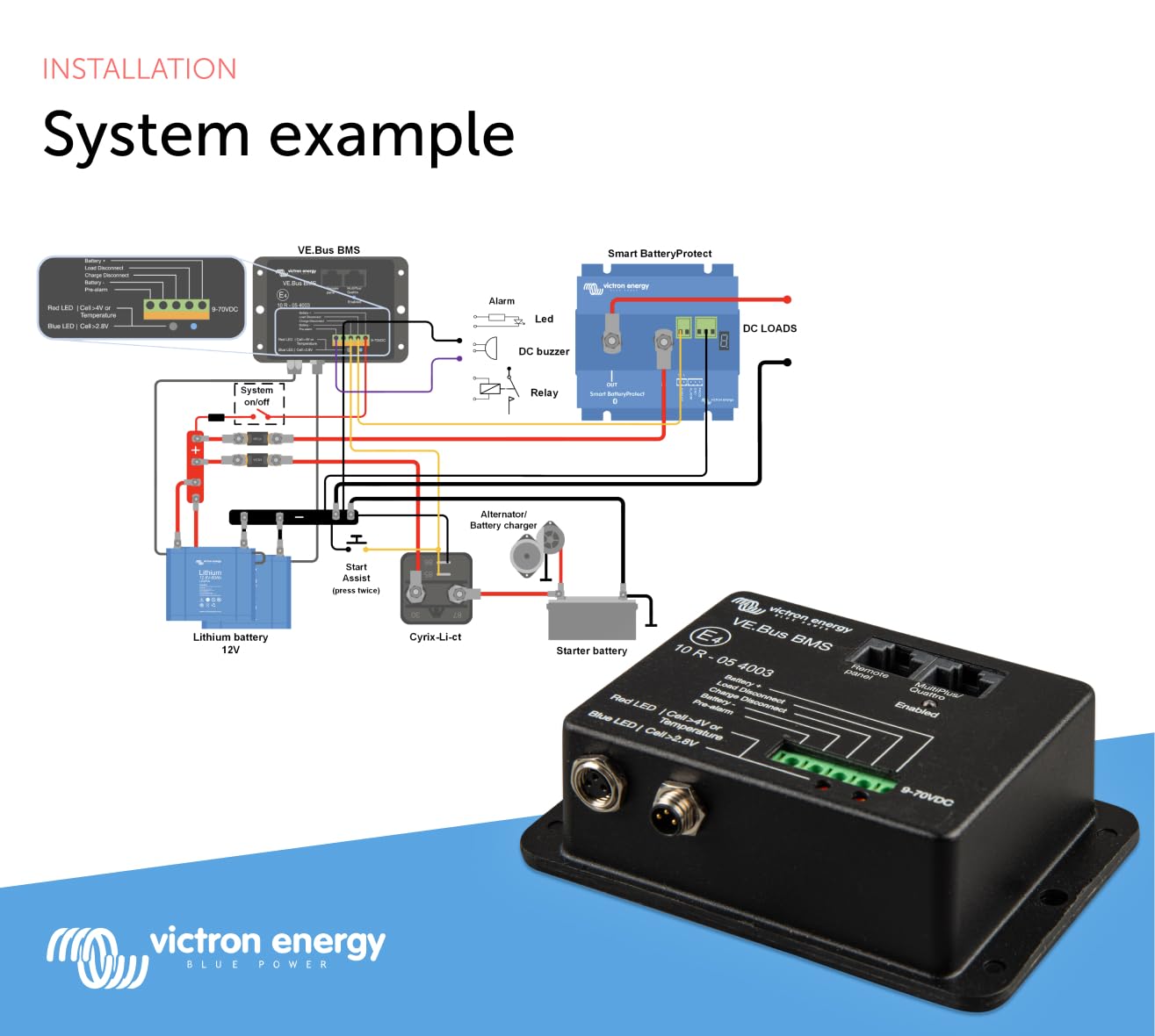

The VE.Bus BMS connects to a Victron MultiPlus, Quattro, or Phoenix inverter/charger via a standard RJ45 UTP cable. It monitors cell voltages and temperature, then takes protective action: it shuts down or disconnects loads on imminent cell under-voltage, reduces charge current on imminent cell over-voltage or over-temperature, and shuts down or disconnects battery chargers on over-voltage or over-temperature conditions. This is why a MultiPlus may drop to emergency 5A charge mode — the BMS is limiting charge current to protect the cells.
Does It Work with Victron Lithium Smart Batteries?

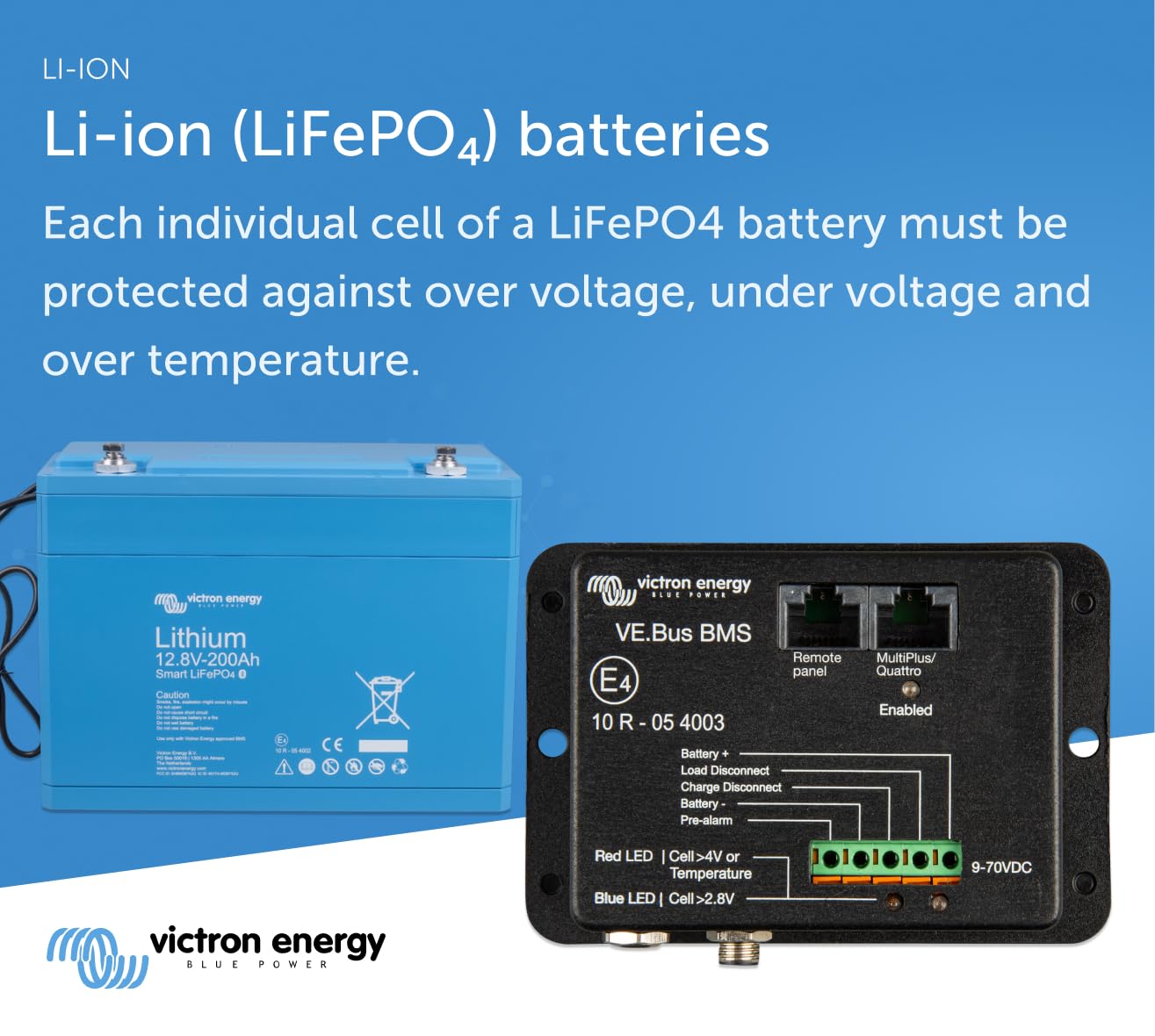

Yes — the VE.Bus BMS is designed for Victron Lithium Smart battery systems, coordinating with the batteries' cell balance signals via the BMS cable system.
VE.Bus BMS vs Smart BMS 12/200
The VE.Bus BMS is for systems built around VE.Bus inverters (MultiPlus/Quattro) with Victron lithium batteries. The Smart BMS 12/200 is for third-party or non-VE.Bus setups using Bluetooth communication. Choose the VE.Bus BMS if you run MultiPlus or Quattro inverters.
Specifications
- Brand: Victron Energy
- Product Type: VE.Bus Battery Management System (BMS)
- System Compatibility: 12V, 24V, and 48V systems
- Operating Voltage Range: 9–70V DC
- Connection: RJ45 UTP cable to MultiPlus, Quattro, or Phoenix inverter
- Protection: Load disconnect (under-voltage), charge current reduction, charger shutdown (over-voltage / over-temperature)
Use Cases
Essential safety hardware for lithium battery banks in off-grid homes, marine, and RV systems running Victron MultiPlus, Quattro, or Phoenix inverters.
Price & Deal Value
$56.06 vs $117.30 — save over 50%. Add coupon OUTPOST12 for an extra 12% off; free shipping on orders over $45.
